#1089 5-Point Gear Driven Multi Point Mortise Mechanism

Features:

3 Deadbolts, 2 Shoot Bolts
- Gear operated – 2 complete rotations of the key or thumb turn simultaneously engage all 5 locking points trim
European Profile Cylinder operated, lever is ABOVE the cylinder
Brass extrusion available in multiple finishes
Shoot Bolts are part of main extrusion, no need to attach them
85 mm spacing between cylinder and lever
Reversible handing (see Dimension Drawings tab)
Handle Height of 40.905″
Backsets:
- 50 mm (2″)
- 60 mm (2-3/8″)
Stock height is 102″ tall:
- For shorter doors, extrusion can be cut/adjusted down to 79″ tall
- For taller doors, simply add extensions (see Dimension Drawings tab)
Modern and Traditional trim options available (see Compatible Plates / Rosettes tab)
For double doors, pair with our #1092 2-Point Gear Driven Inactive Mortise Mechanism

Categories: Lock Mechanisms, Lock Mechanisms, Multipoint, Swing Door Hardware

Description

Description

Part Numbers: (see ‘Parts List’ tab)

Our #1089 5-Point Gear Driven Multi Point Mortise Mechanism offers peace of mind that multi point security brings, with 5 locking points that securely lock up, down, and to the side. This lock is engineered for smooth operation, with gear operation securing all locking points simultaneously.

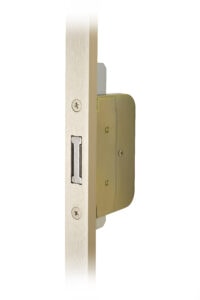

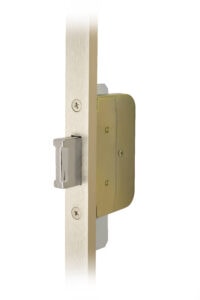

3 Deadbolts, plus Top and Bottom Shoot Bolts
- Gear operated – 2 complete rotations of the key or thumb turn simultaneously engage all 5 locking points
European Re-Keyable Schlage 5 Pin Profile Cylinder operated
- Lever is ABOVE the cylinder
Solid Brass Channel is available in multiple finishes

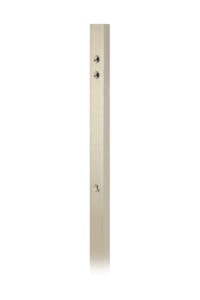

Shoot Bolts are integrated into solid brass channel on door edge, so there’s no need to attach them
85 mm spacing between cylinder and lever

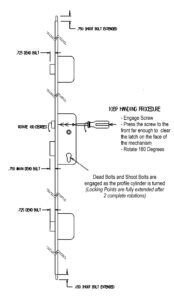

Reversible handing (see Dimension Drawings tab)
Handle Height of 40.905″
Backsets:
- 50 mm (2″)
- 60 mm (2-3/8″)
Stock height is 102″ tall:
- For shorter doors, extrusion can be cut/adjusted down to 79″ tall

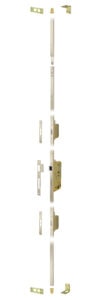

- For taller doors, simply add extensions (23-7/16″ per extension; see Dimension Drawings tab)
Modern and Traditional trim options available (see Compatible Plates / Rosettes tab)

***For double doors, pair with our #1092 2-Point Gear Driven Inactive Mortise Mechanism***

Parts List

Part Numbers:

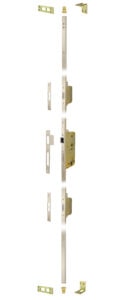

Mechanism (Includes all 5 locking points; 102″ tall with no extensions; all strikes and mounting screws included)
- Part # 1089-Finish-Backset
  - Finishes Available:
    - Polished Brass (US 3), Antique Brass (US 5), Oil Rubbed Bronze (US 10B), Satin Nickel (US 15), Antique Nickel (US 15A), Polished Chrome (US 26), Satin Chrome (US 26D)
  - 50 mm or 60 mm Backset available
Main Strike (Latch & Deadbolt)

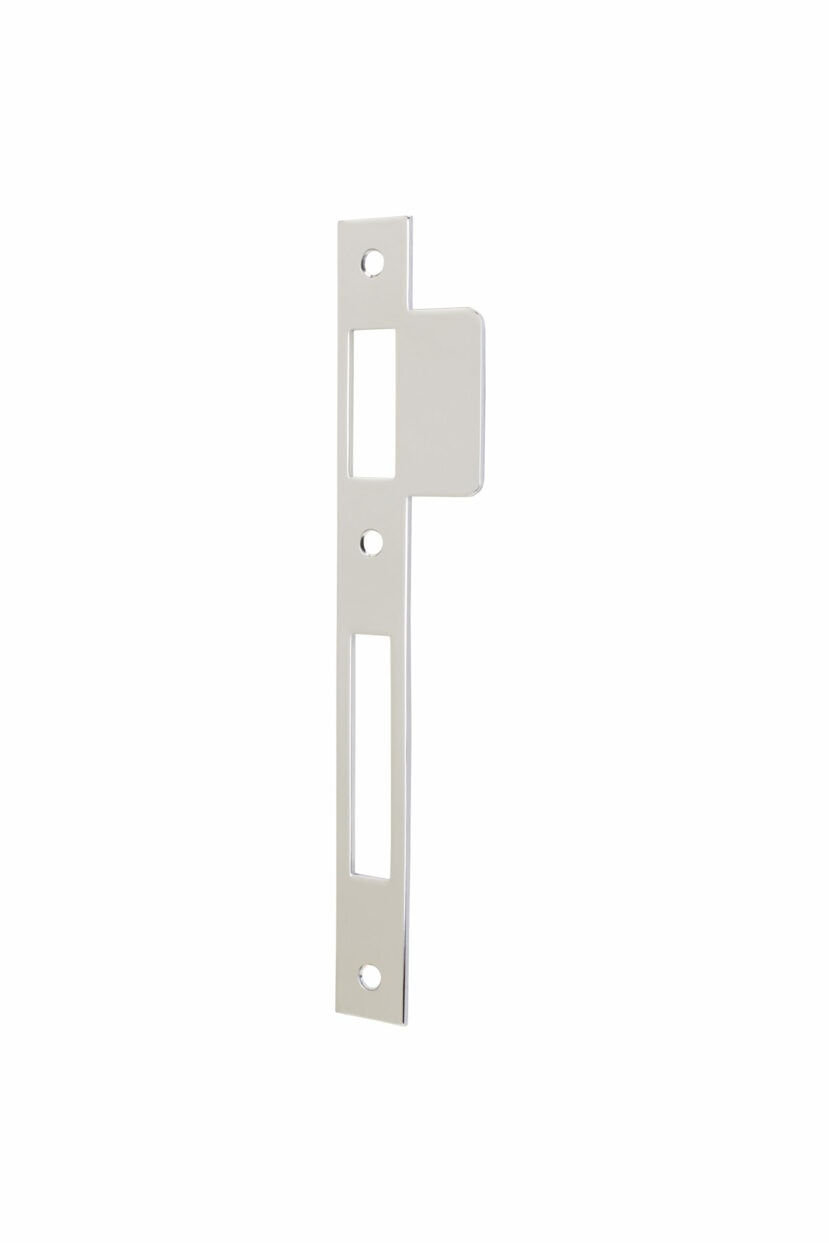

- Part # 357-Finish
Secondary Deadbolt Strikes:

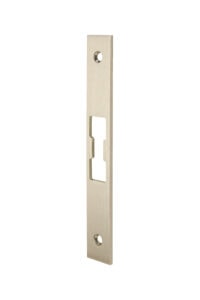

- Part # 79OT-Finish
Shoot Bolt Strikes (not sold separately; all are included with the mechanism):
- Dustproof Strike:
  - Part # 3014
- Corner Strike:

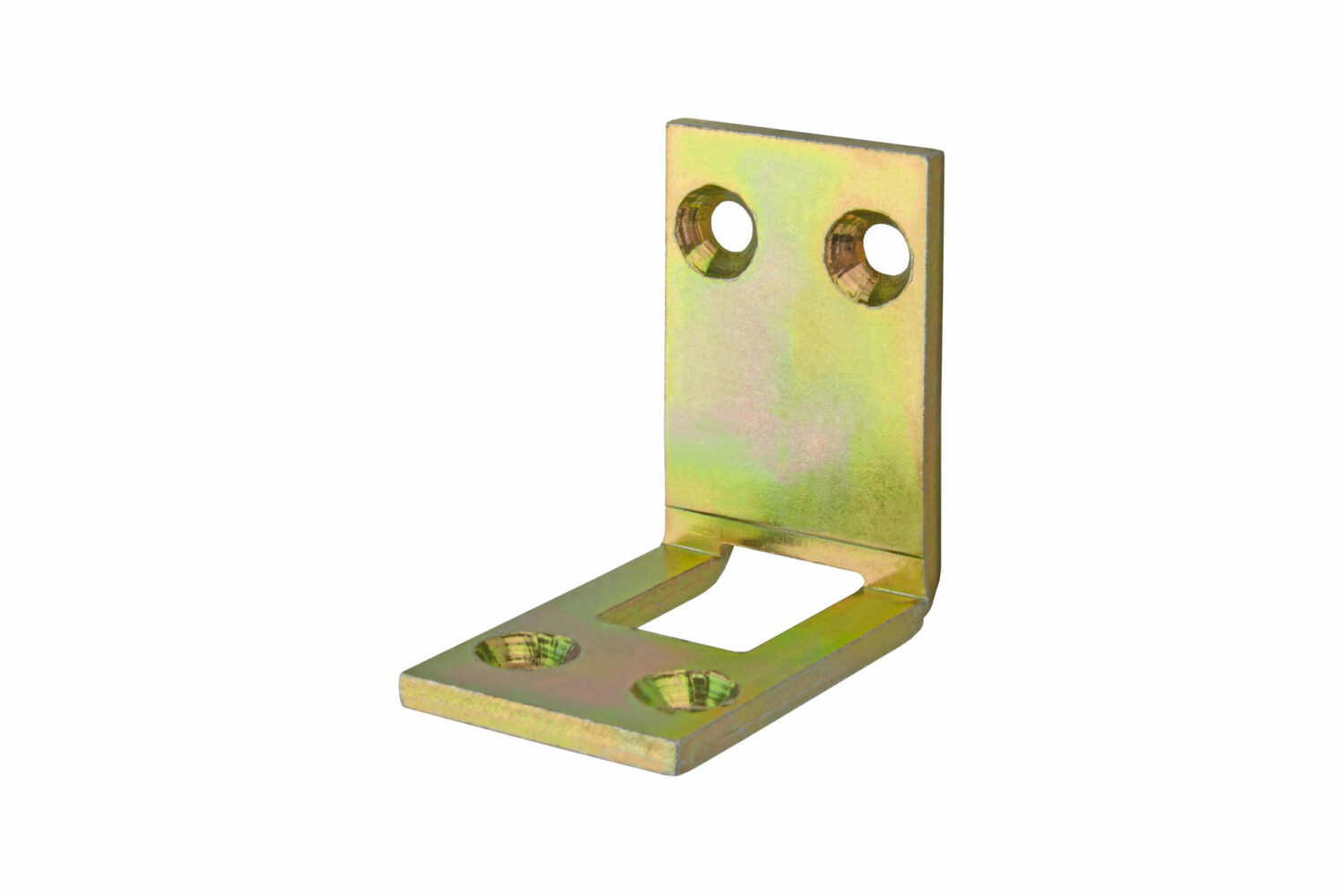

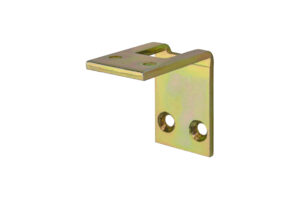

  - Part #71-S
- Double Strike:

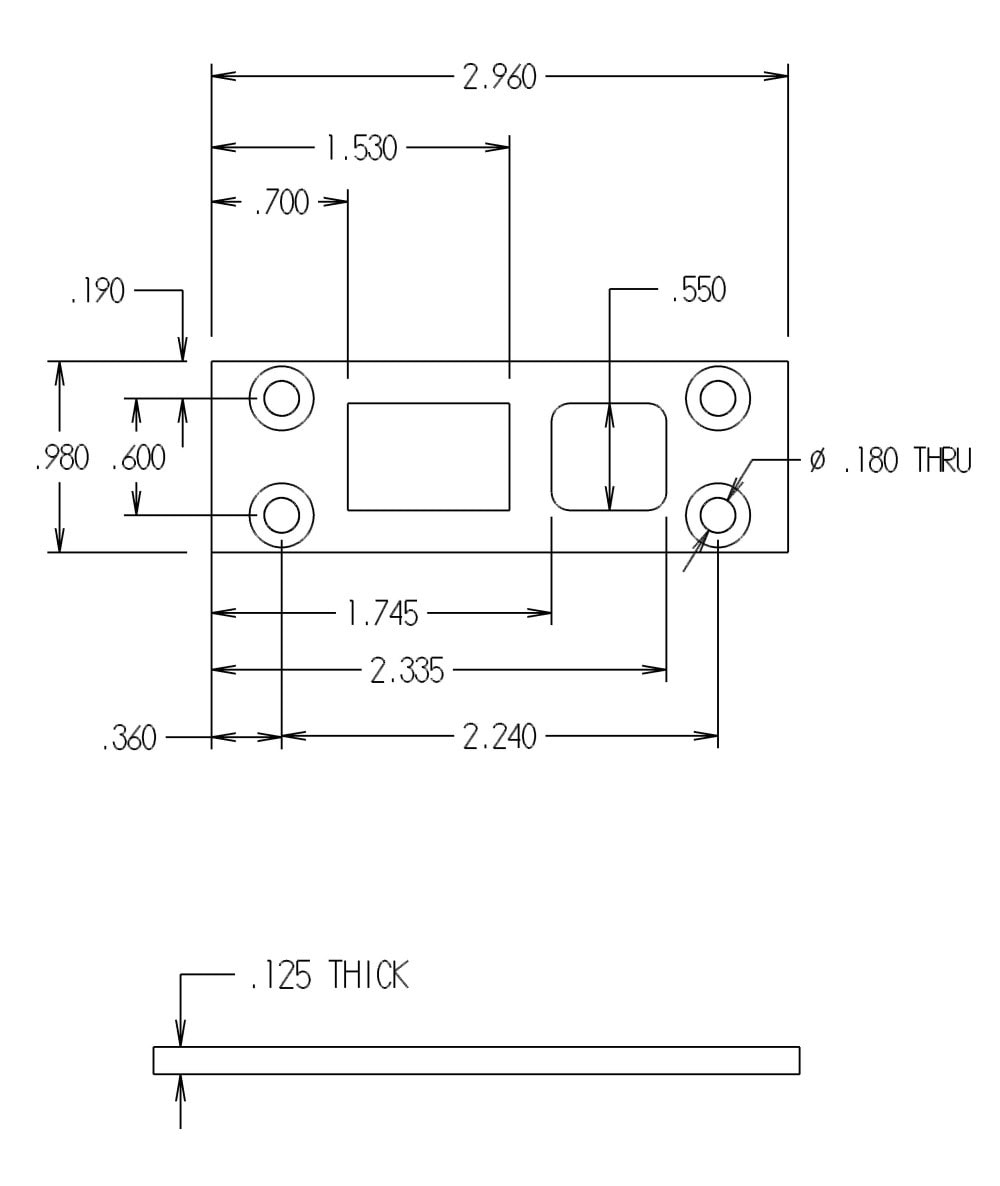

  - Part #72-S
Extension:

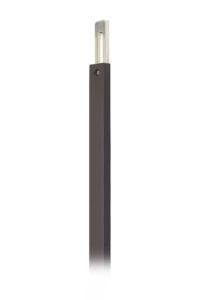

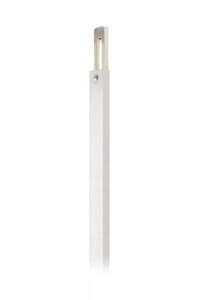

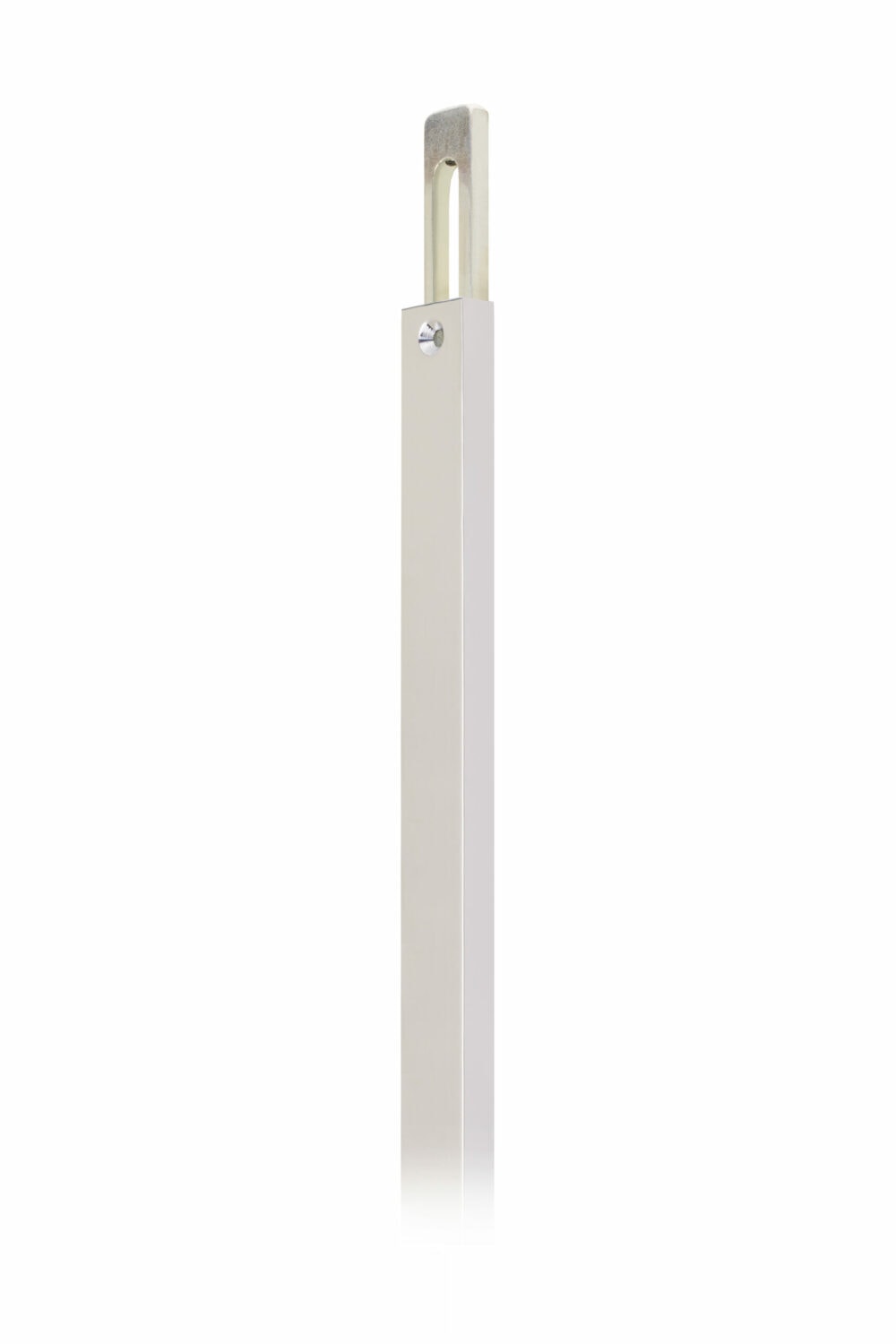

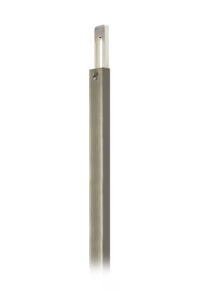

- Part # 90-Finish
