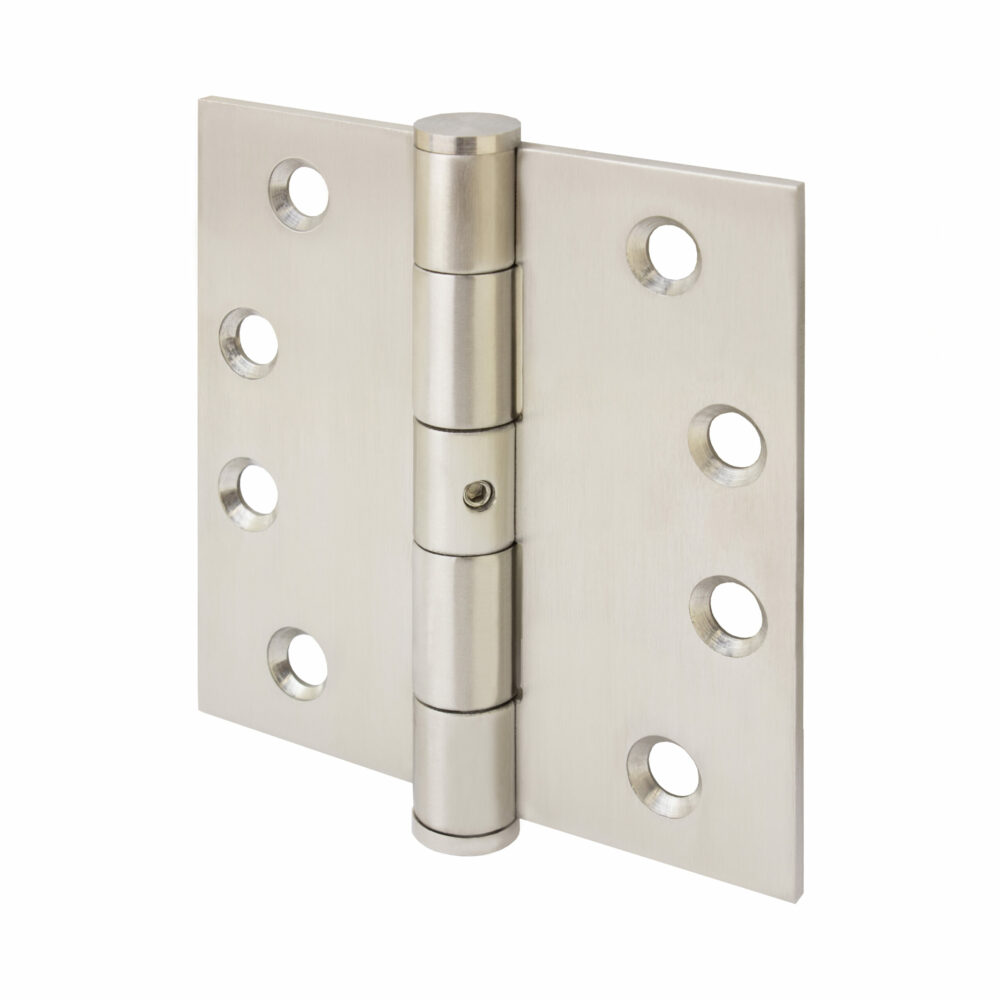

#44138SCNP316 4″ x 4″ Stainless Steel (Grade 316) Plain Bearing Square Corner Hinge w/Non-Removable Pin

Part Numbers: See ‘Part Numbers’ tab

FPL’s 4″ x 4″ Stainless Steel (Grade 316) Plain Bearing Square Corner Hinge w/Non-Removable Pin offers UNMATCHED performance.

• Square Corners
• Marine Grade 316 Stainless Steel material
• Plain Bearing
• .138″ (3.5mm) thick
• Stainless Steel Non Removable Pin means even with the hinge exposed to the exterior of the building, it cannot be removed.  Set screw secures the pin in place, and is inaccessible from the exterior
• Heavy duty performance (see ‘Technical Specs’ tab for more details):
  • 2 hinges support 118 lbs
  • 3 hinges support 177 lbs
  • 4 hinges support 236 lbs

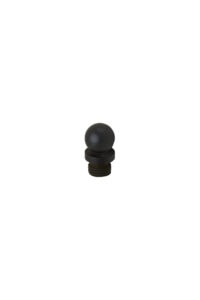

• Ball and Steeple tips are also available (see ‘Photo Gallery’ and ‘Technical Specs’ tabs)
• Screw Packs included
