Patented Features:
- Adjustable backset (See Technical Specifications tab for how to adjust backset)
- 27.5 mm (Mechanism Depth – 42.5 mm)
- 37.5 mm (Mechanism Depth – 52.5 mm)
- 50 mm (Mechanism Depth – 65 mm)
- Adjustable handle height (See Technical Specifications tab for how to adjust handle height)
- 38-9/16″ (Door)
- 16″ (Window)
Description
Part Number: 95
Our Lift & Slide Gear Mechanism is Patented and provides you the latest innovations on Lift & Slide hardware:
- Adjustable backset (See Technical Specifications tab for how to adjust backset)
- 27.5 mm (Mechanism Depth – 42.5 mm)
- 37.5 mm (Mechanism Depth – 52.5 mm)
- 50 mm (Mechanism Depth – 65 mm)
- Adjustable handle height (See Technical Specifications tab for how to adjust handle height)
- 38-9/16″ (Door)
- 16″ (Window)
- Non corrosive materials only, such as 304 Grade Stainless Steel, Aluminum, and Brass
- For doors taller than 100″, use:
- Lift & Slide 24″ Mechanism Extension (#213 – adds Locking Port)
- Lift & Slide Mechanism Filler Piece (no additional Locking Port)
***Additional Lift & Slide Mechanism Options***
Lift & Slide Roller with Stainless Steel Wheels:
- 97-SS – Front Lift & Slide Roller Carriage; 800 lbs capacity (Lift & Slide Basic Roller Kit with Stainless Steel Wheels includes Qty. of 1 #97-SS)
- 98-SS – Rear/Middle Lift & Slide Roller Carriage; 800 lbs capacity (Lift & Slide Basic Roller Kit with Stainless Steel Wheels includes Qty. of 1 #98-SS)
- Even though the Lift & Slide Basic Roller Kit with Stainless Steel Wheels is capable of supporting 1,600 lbs (800 lbs per roller carriage), if your door panel is 8′ long or more, we do recommend ordering an additional #98-SS Rear/Middle Roller Carriage for every additional 5′. See examples below:
- 6′ long panel – BRK-SS
- 8′ long panel – BRK-SS, plus 1 additional #98-SS Roller carriage
- 10′ long panel – BRK-SS, plus 1 additional #98-SS Roller carriage
- 12′ long panel – BRK-SS, plus 2 additional #98-SS Roller carriages
- Even though the Lift & Slide Basic Roller Kit with Stainless Steel Wheels is capable of supporting 1,600 lbs (800 lbs per roller carriage), if your door panel is 8′ long or more, we do recommend ordering an additional #98-SS Rear/Middle Roller Carriage for every additional 5′. See examples below:
Lift & Slide Roller with Nylon & Fiberglass Wheels:
- 97-NF – Front Lift & Slide Roller Carriage; 800 lbs capacity (Lift & Slide Basic Roller Kit with Nylon & Fiberglass Wheels includes Qty. of 1 #97-NF)
- 98-NF – Rear/Middle Lift & Slide Roller Carriage; 800 lbs capacity (Lift & Slide Basic Roller Kit with Nylon & Fiberglass Wheels includes Qty. of 1 #98-NF)
- Even though the Lift & Slide Basic Roller Kit with Nylon & Fiberglass Wheels is capable of supporting 1,600 lbs (800 lbs per roller carriage), if your door panel is 8′ long or more, we do recommend ordering an additional #98-NF Rear/Middle Roller Carriage for every additional 5′. See examples below:
- 6′ long panel – BRK-NF
- 8′ long panel – BRK-NF, plus 1 additional #98-NF Roller carriage
- 10′ long panel – BRK-NF, plus 1 additional #98-NF Roller carriage
- 12′ long panel – BRK-NF, plus 2 additional #98-NF Roller carriages
- Even though the Lift & Slide Basic Roller Kit with Nylon & Fiberglass Wheels is capable of supporting 1,600 lbs (800 lbs per roller carriage), if your door panel is 8′ long or more, we do recommend ordering an additional #98-NF Rear/Middle Roller Carriage for every additional 5′. See examples below:

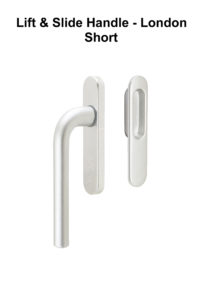

Lift & Slide Door Handles - Over 8.5" Long

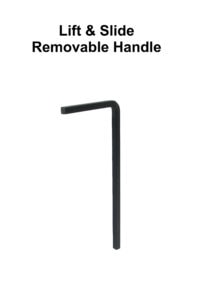

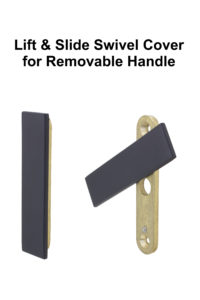

Lift & Slide Removable Handles

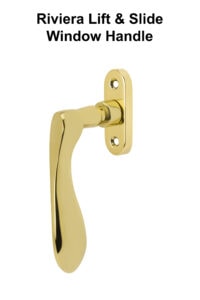

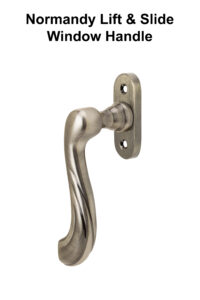

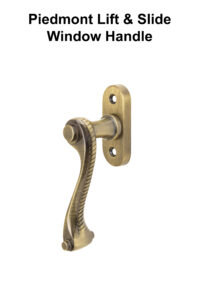

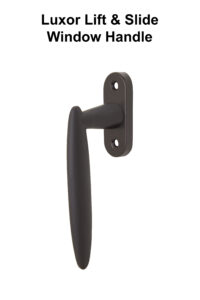

Lift & Slide Window Handles - Between 6" and 7" Long
