Features:
- 5/8″ Radius Corners
- Solid Stainless Steel material
- 2 non detachable, anti-friction Stainless Steel ball bearings mean greater load capacity and increased hinge life
- Stainless Steel Non Removable Pin means even with the hinge exposed to the exterior of the building, it cannot be removed. Set screw secures the pin in place, and is inaccessible from the exterior
- Heavy duty performance (see ‘Technical Specs’ tab for more details):
- 2 hinges support 118 lbs
- 3 hinges support 177 lbs
- 4 hinges support 236 lbs
- Button tips thread into the top and bottom of the hinge, preventing the pin from rising out of the hinge barrel
Description
Part Numbers: See ‘Part Numbers’ tab

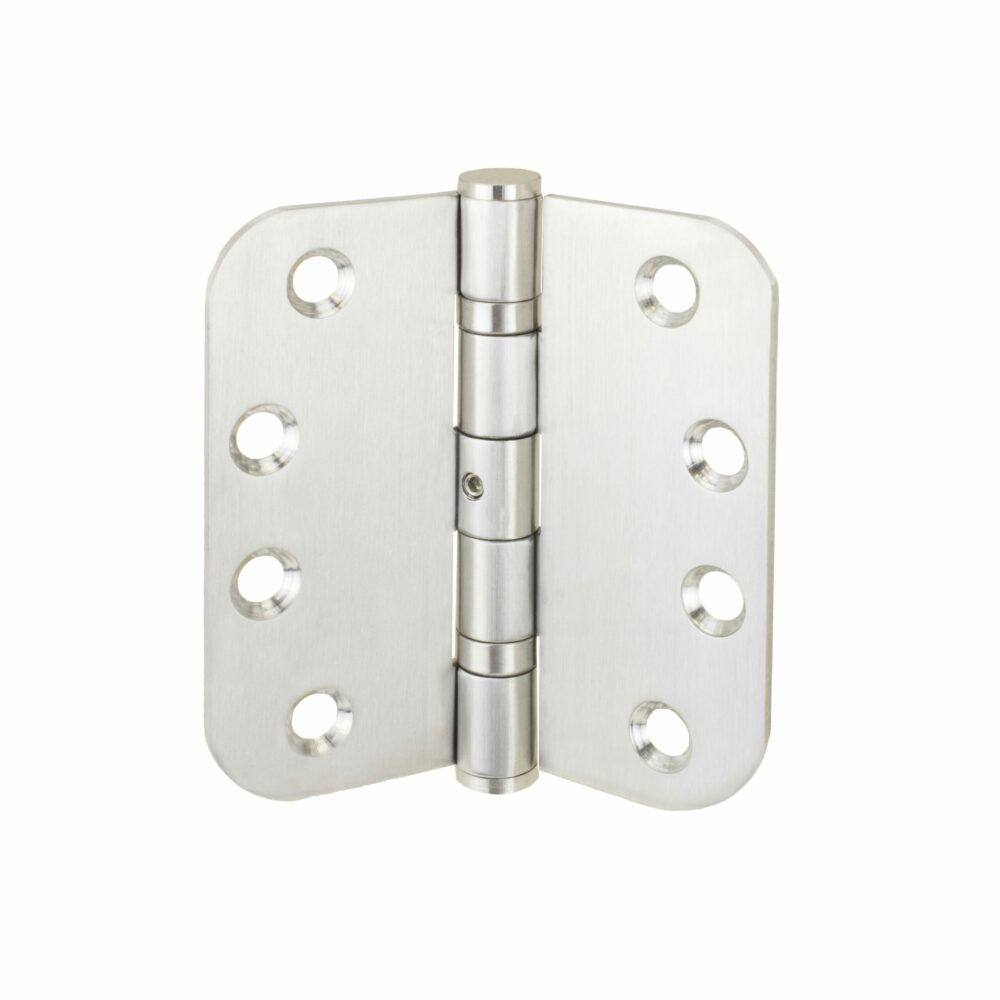

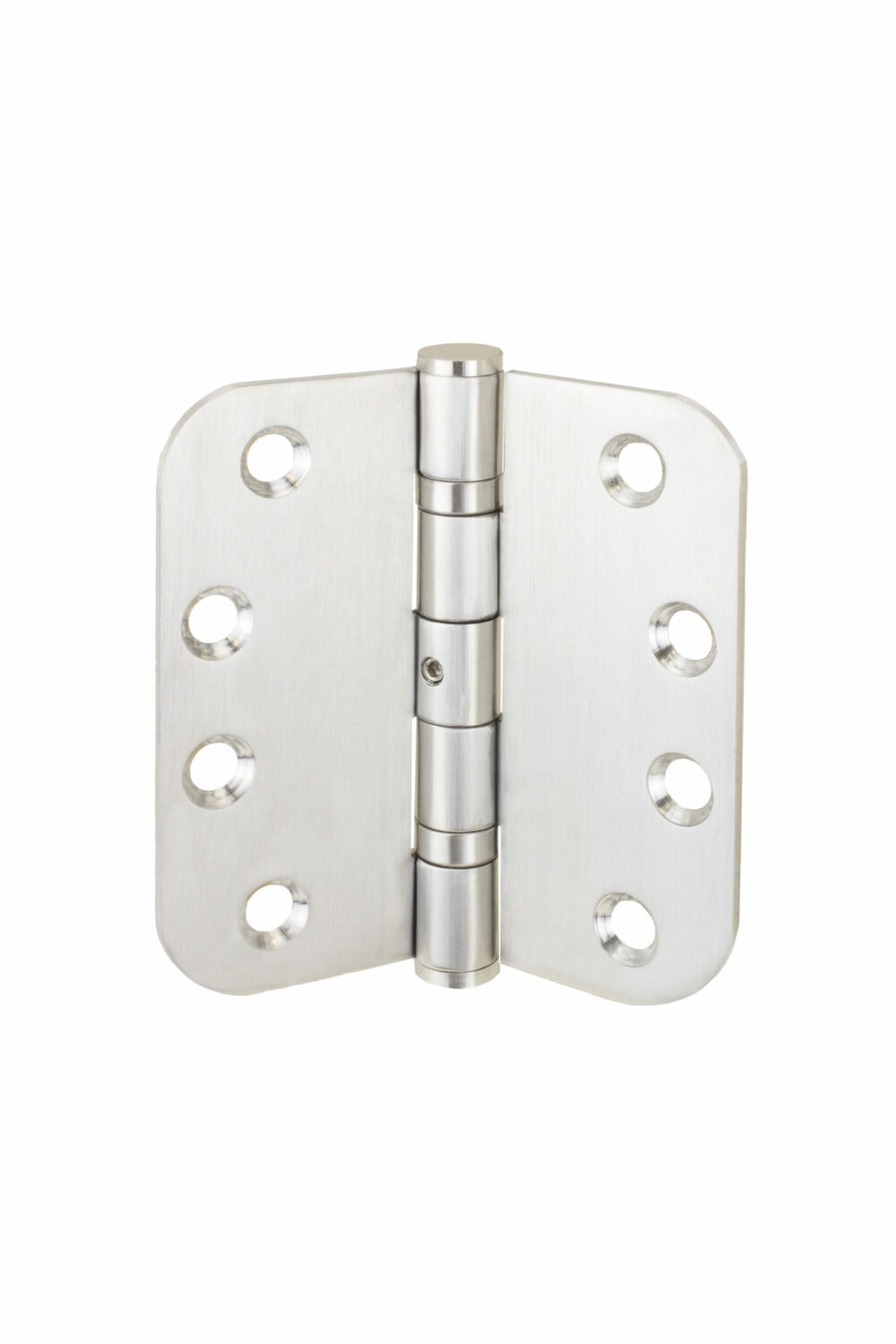

FPL’s 4″ x 4″ Stainless Steel Radius Hinge with Heavy Duty Ball Bearings and Non-Removable Pin offers UNMATCHED performance.
- 5/8″ Radius Corners
- Solid Stainless Steel material
- 2 non detachable, anti-friction Stainless Steel ball bearings mean greater load capacity and increased hinge life
- Stainless Steel Non Removable Pin means even with the hinge exposed to the exterior of the building, it cannot be removed. Set screw secures the pin in place, and is inaccessible from the exterior
- Heavy duty performance (see ‘Technical Specs’ tab for more details):
- 2 hinges support 118 lbs
- 3 hinges support 177 lbs
- 4 hinges support 236 lbs
- Button tips thread into the top and bottom of the hinge, preventing the pin from rising out of the hinge barrel
- Screw Packs included
Hinge Part Number:
- BB4709-32D
Screw Pack Part Number:
- 4X4H-SP-32D
These Hinges can be used as replacements on doors from the following manufacturers:
- Eagle Windows & Doors
- Andersen E-Series
- Windsor Windows & Doors
*** Door Manufacturers listed are subject to change and are listed for reference only. Please confirm dimensions under the ‘Dimension Drawing’ tab. Some retrofitting may be necessary. ***
Hinge and Screws
Dimensions, Weight & Height Specifications
